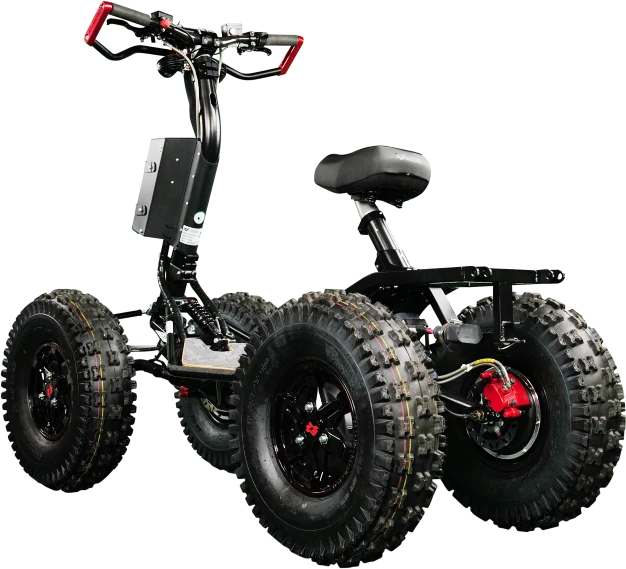

EZRAIDER HD4

Rear Wheel Drive

1200W MOTORS X 4

Hydraulic Brake System

Dual Piston - 4 Disc Brakes

Battery Capacity

3000 W/HR

Payload

550 LBS / 250 KG

$19,200

KEY FEATURES

Key Features

A. Fully electric- Simplicity design.

B. Safe and stable, low center of gravity and extremely Intuitive to operate “Mount and move”.

C. All wheel drive- Enclosed 1200W wheel hub motors that feed direct torque to each wheel independently providing maximum efficiency.

D. Regenerative braking system captures kinetic energy from the vehicle’s momentum to recharge the battery.

E. Multi-functional EV controllers for smooth driving experience, with a specific controller for each motor.

F. Off road 22/7-10 tiers

G. Lithium Ion 60-volt battery, high capacity 3000 W-Hr.

H. Unique, patent protected, steering/suspension system- Adjustable rubber and gas/oil damper combo

I. Dual lever, front and rear, All wheel’s hydraulic disk brakes

J. Laminated deck with logo grip tape

K. Folding steering column for easy transport

L. E-cart compatible power & control harness.

Sold separately

  1. Front display and key switch
  2. Handguard
  3. Skid plate
  4. Heavy duty luggage carrier
  5. External battery pack (Not in image)
  6. Removable Seat upgrade
1

Digital panel

2

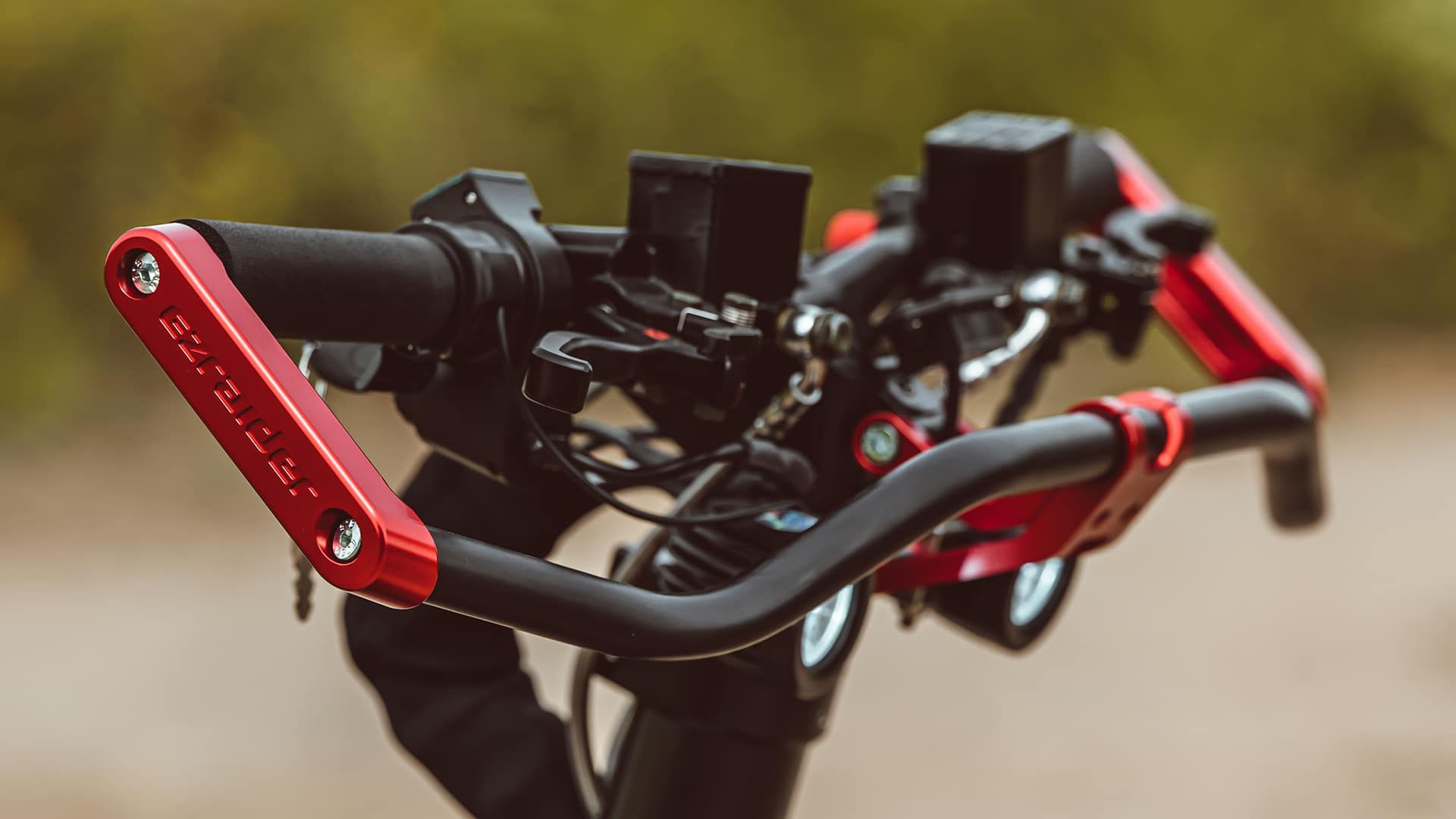

HandGuard.

3

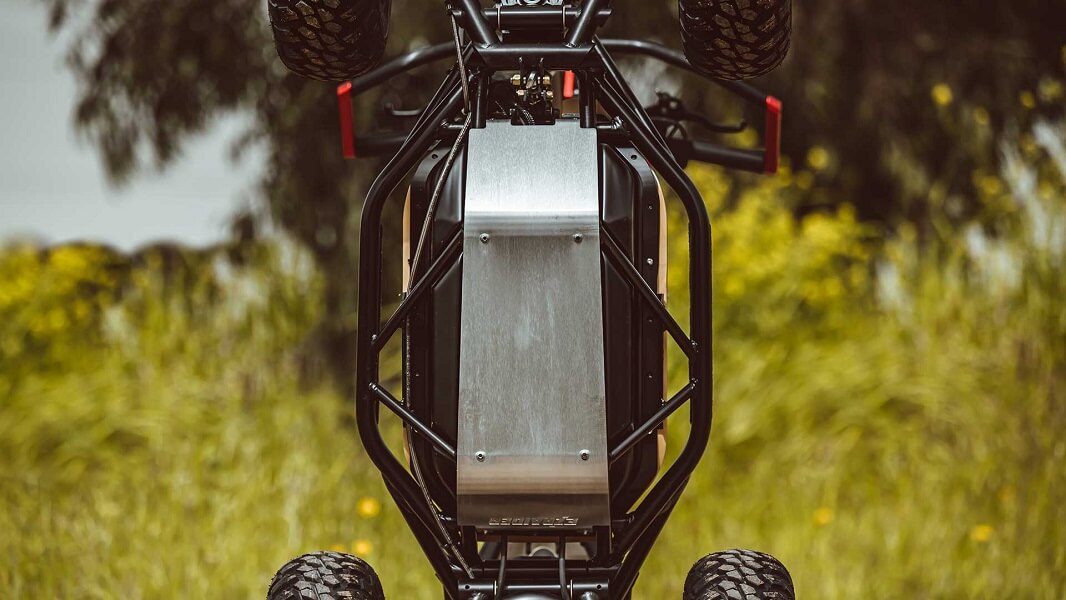

Skid Plate

4
Heavy Duty Luggage Carrier
5

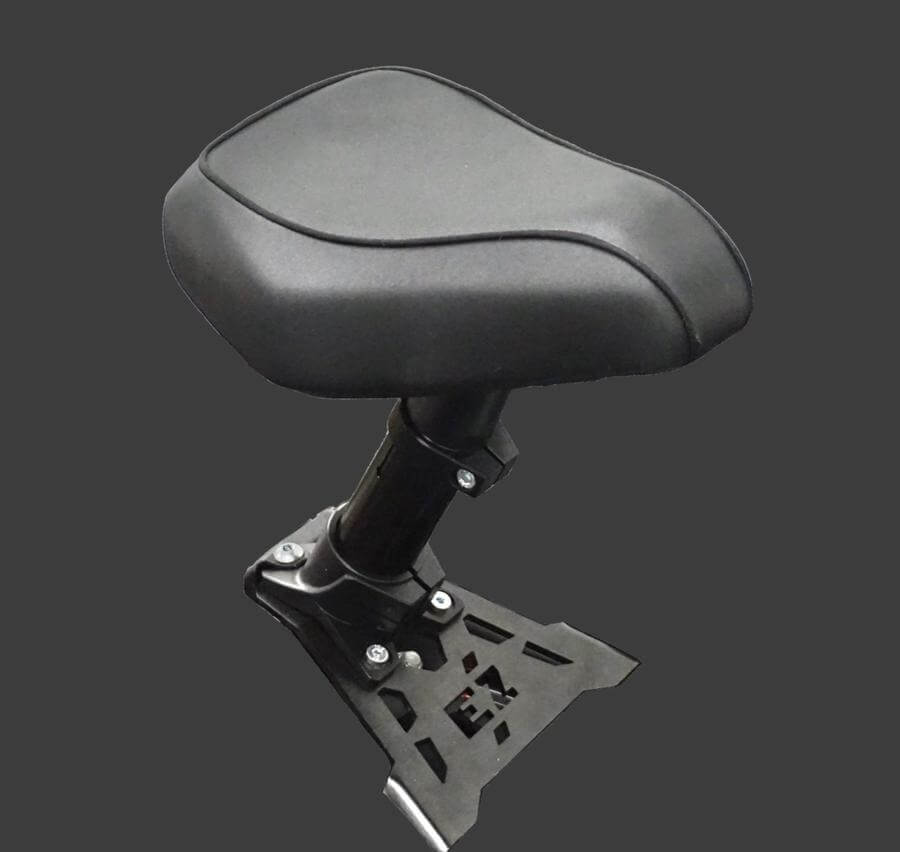

Removable Seat
Upgrade

ADVANCED FOLDING MECHINISEM

SPECIFICATION

EZRAIDER sets a new standard in personal mobility, placing state of the art technology right in your grip. So much more than an off-road vehicle, the EZRAIDER is a completely new, patent protected concept in maneuverability.

GROUND CLEARANCE

24CM / 9.5"

PAYLOAD

250 KG / 550 LB

MAX RANGE

80KM / 50MI

WEIGHT

130KG / 280 LBS

LENGTH

170CM / 66"

OVERALL HEIGHT

135CM / 53"

FOLDED HEIGHT

75CM / 29"

WIDTH

74CM / 29"

APPROACH DEGREE

90 DEG

DEPARTURE DEGREE

90 DEG

TIRES

20/7-10

MAX SPEED

55 KMH 34 MPH
